Electric Golf Cart With 30% Gradeability AC Motor And Hydraulic Brake For Golf Courses And Tourist Resorts

Electric Golf Cart With 30% Gradeability AC Motor And Hydraulic Brake For Golf Courses And Tourist Resorts

Marca:	LANGJIE
Número De Modelo:	Se aplicará el procedimiento de ensayo de la norma de calidad de los productos.
MOQ:	1 unidad
Precio:	Negotiate
Condiciones De Pago:	T/T
Capacidad De Suministro:	300 unidades al mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Guangdong

Certificación:

CE, DOT

Documento:

Manual del producto PDF

Nombre de piezas:

Cabaña eléctrica

Velocidad máxima:

Entre 20 y 30 km/h

Voltaje:

48V

Capacidad de pasajeros:

2 + 2 asientos

capacidad de escalada:

30%

Radio de giro:

3.5m

Motor:

Motor de corriente alterna de 48 V/5 kW

Batería:

El valor de las emisiones de dióxido de carbono debe ser igual o superior a la media de las emisione

Detalles de empaquetado:

Envases sin embalaje o envases de acero

Capacidad de la fuente:

300 unidades al mes

Resaltar:

30% Gradeability Electric Golf Cart

Descripción del producto

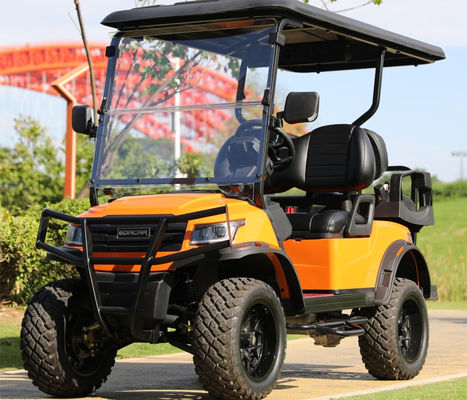

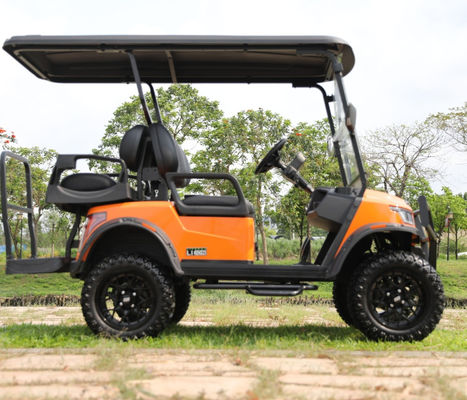

Electric Golf Cart With 30% Gradeability AC Motor And Hydraulic Brake For Golf Courses And Tourist Resorts

Electric Golf Car 2+2 Seats MODEL EDA-E918-L2+2

HS CODE	8703101900
Qty/20'GP (Assembled)	2 UNITS
Qty/40'HQ (Assembled)	4 UNITS
Qty/20'GP (Disassembled)	7 UNITS
Qty/40'HQ (Disassembled)	18 UNITS

Technical Specifications

Passenger capacity	4 seats
Max.Speed	18-40km/h
Range (loaded)	70km-90km (level road)
Climbing Ability	30%
Braking Distance	<6m
Min.Turning Radius	3.5m
Recharge time	8~10h
L×W×H	292013152140 mm
F/R Tread	980mm/1085mm
Axle Distance	1690mm
Curb Weight	600kg
Max. loading	340kg

Key Components

Motor	48V/5KW AC motor
Controller	48V
Battery	Maintenance-free battery 8V /150Ah*6PCS
Body & Roof	Automobile special PP material injection molded parts / Integrated molding roof
Windshield	Foldable windshield
Seats	Ergonomic seat, leather fabric
Tire	23*10.5-12 Aluminum steel rim

Advanced Features

Chassis: Robotic welding with high-end coating processing, super strong, no rust
Front Suspension: Double swing arm independent front suspension + spiral spring + cylinder hydraulic shock absorption
Rear Suspension: Overall rear axle, speed ratio 12.49:1 spiral spring shock absorption + cylinder hydraulic shock + rear stabilizer bar
Lighting System: LED front combination light and rear taillight with multiple functions
Brake System: Double-loop four-wheel hydraulic brake, four-wheel disc brake + electronic brake parking
Steering System: Double gear rack steering with automatic clearance compensation
Dashboard: Injection molding instrument panel with multiple functions including USB power supply

Color Options

Standard seat colors: Black, Beige

Optional colors: Ocean Grey, Sapphire blue, Pearl black, Pearl White, Apple Green, Matt Black, Dark Green, Orange, Red

Roof: Black

Manufacturing Capabilities

Monthly production capacity: 100 units

Professional workforce: 350 employees including quality inspectors

Robust iron frame packaging for transit protection

Global shipping experience to multiple countries including USA, Canada, Australia, and European nations
